FL800D
| Company | CU Phosco |
|---|
Images

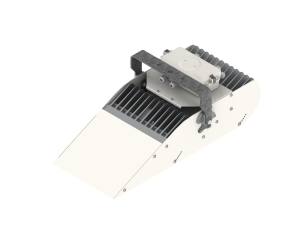

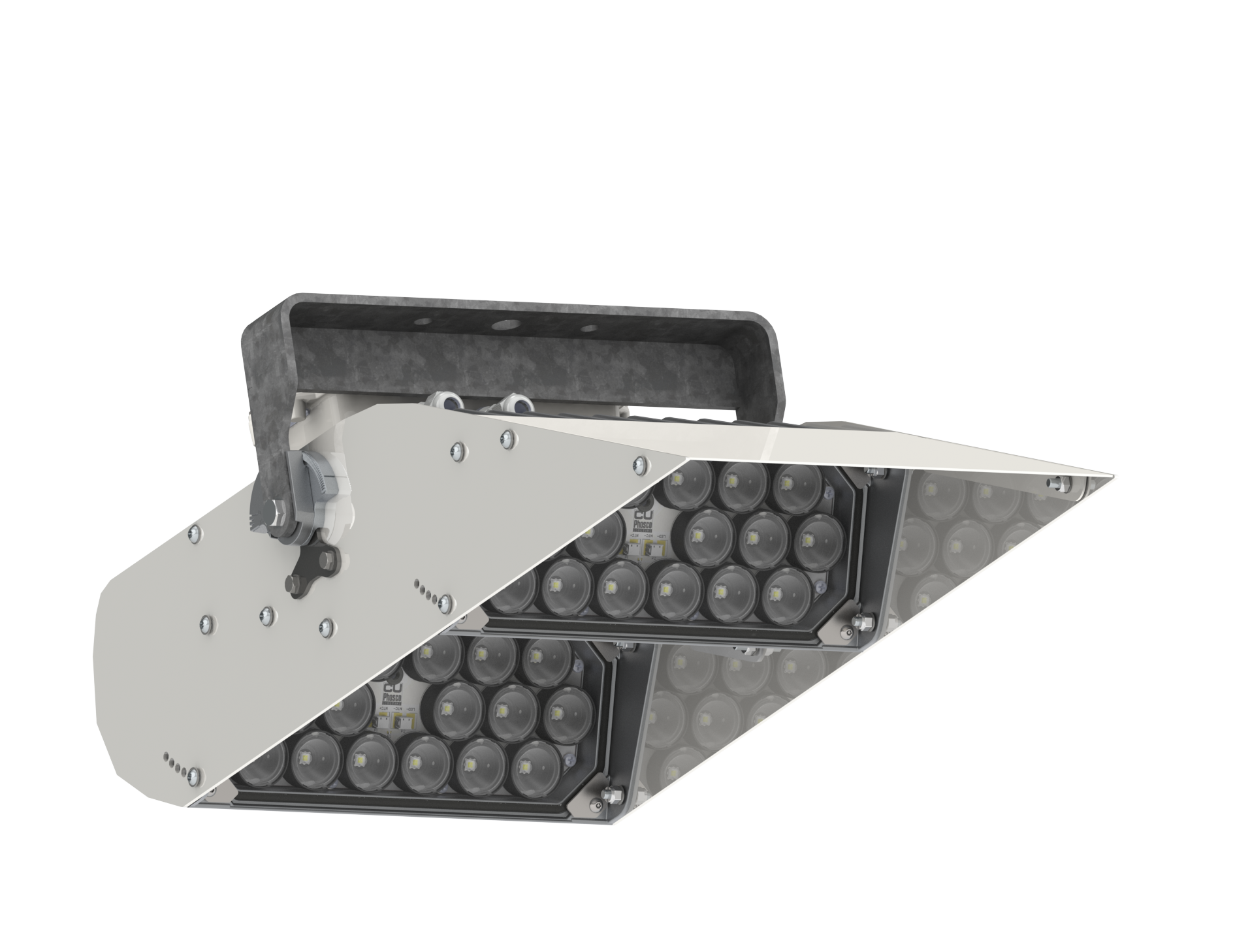

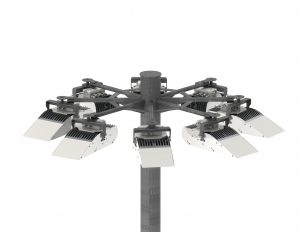

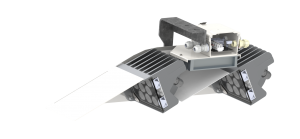

The FL800D can be arranged on a mast with full azimuth rotation and tilt function. These versions have drivers built in so are self-contained. Each module has a range of optical distribution options and a range of elevation angles to build a combined luminaire photometric output that meets even the most challenging of schemes. FL800D uses AeroFlow® Cooling System to provide exceptional thermal management. Maximised heat dissipation enables a compact luminaire design, which can be retrofitted onto existing masts. Lumileds LUXEON® MX LEDs and AeroFlow® together deliver high lumen output with very low lumen depreciation over life, this minimises energy and operating cost by reducing overlighting. FL800D offers an extremely competitive solution to replace traditional HID sources with performance, versatility, and reliability.
Features & Benefits:
- High flux density and efficacy LED
- Reduces energy costs and carbon emissions
- Improved safety and visual performance
- Minimises overlighting, saving energy
- Suitable for high security and safety critical lighting tasks
- L80 @ 100,000 hrs, Ta = 45ºC*
- Flexible mounting allowing cost savings
- Allows mounting on existing columns / masts
- Minimises Total Cost of Ownership
- Dark sky friendly, minimal glare
- Consistent high performance in aggressive environments
- Fully compliant with WEEE and RoHS regulations
- AeroFlow® Cooling System
- Low wind profile area
- Low maintenance costs
- Full Cowl, distribution cut off 5º below horizontal
- IP66 ingress protection
- 100% recyclable
- Light Source: Lumileds LUXEON® MX LED
- Number of LEDs: 18 (per module)
- Correlated Colour Temperature: Warm – 3000K, Neutral – 4000K, Cool – 5700K
- Colour Rendering Index: > 70
- Optical Cover: Flat glass
- Max. Luminaire Efficacy at full power: 115lm/W
- Max. Luminaire Efficacy: 136lm/W
- Electrical Class: I
- Lumen Maintenance output: L80 @ 100,000 hours, Ta = 45ºC • L90 @ 100,000 hours, Ta = 25ºC
- Driver Current: 300mA ~ 1000mA (in 50mA steps)
- Operating Temperature: -40ºC to +50ºC
- Storage Temperature: -40ºC to +80ºC
- Installation Height: 10 ~ 50m
- Installation: Stirrup mount
- Material Marine Grade: Aluminium LM6 (module), Aluminium side plates, Galvanised steel stirrup
- Finish: Natural aluminium (module) • Polyester powder coated RAL 9010 (side plates)
- Ingress Protection: IP66
- Module Elevation Options: 40°, 45°, 50°, 55°, 60°, 65° (select at time of order)
- Luminaire Tilt: (on site) -15° to +15° in 2.5° steps
- Product Configuration: FL800D-1, FL800D-2
- Max. Luminaire luminous flux: 25,140 lm, 49,760 lm
- Power Consumption: 64 ~ 206W, 129 ~ 411W
- Wind Area: (EPA) 0.055m2, 0.095m2
- Weight: 8.2kg, 13.5kg
