Multiuse Light Equipment (MULE)

Company CMC Industries

Images

Description
Specifications

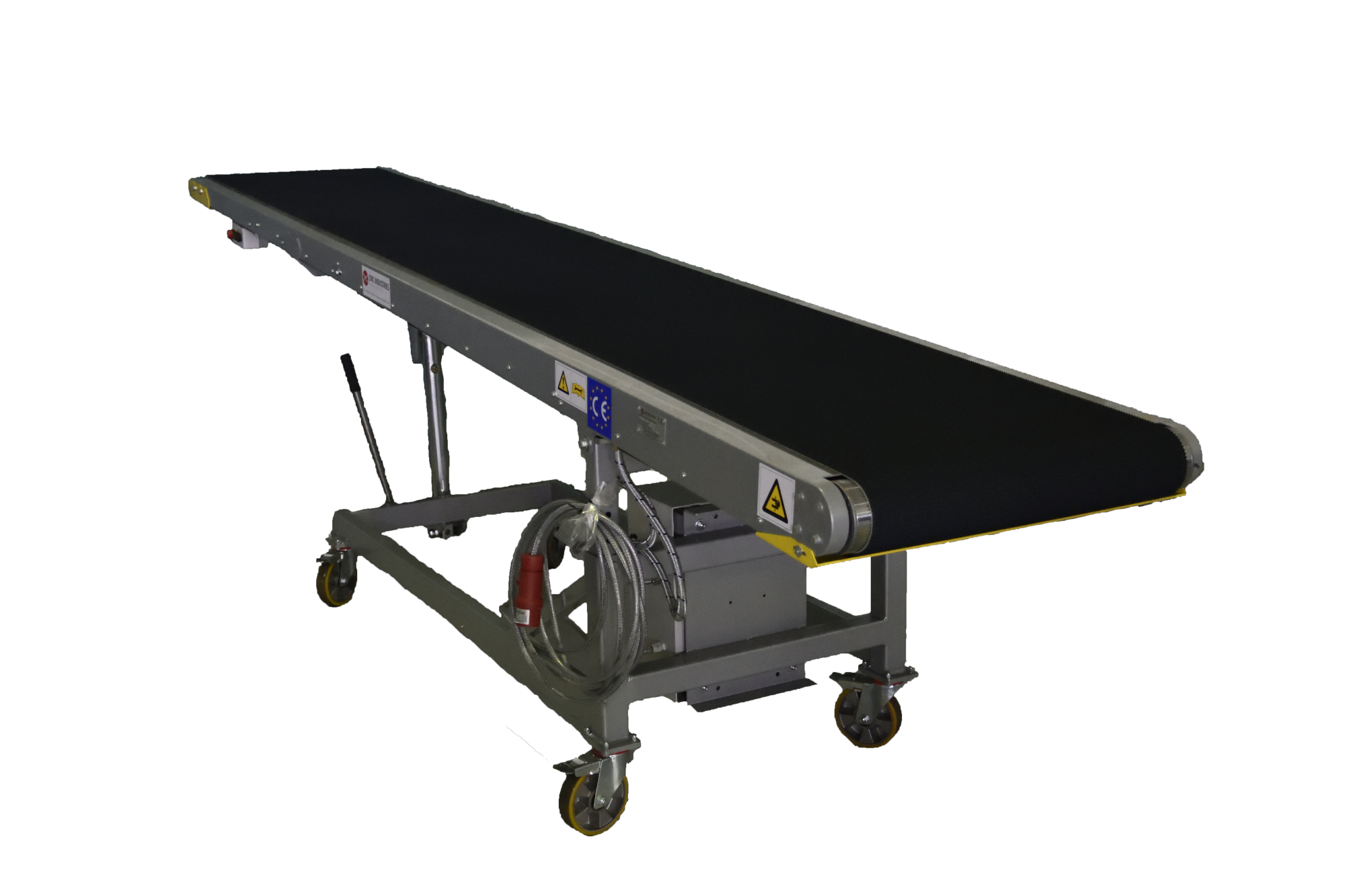

The MULE conveyor is designed to ease the packet/parcel transfer operations without the need of permanent installations. In order to allow a rapid repositioning on the unit according to existing operational needs, the steel frame is supported on wheels and the electrical power is provided with a prearranged cable to be plugged into existing industrial sockets.

It is not necessary to provide for any pneumatic or hydraulic source. The unit is provided with a local electrical panel with emergency push button and all the necessary push buttons/led lamps to control the unit. Working height is adjustable with both discrete steps and inclination range.

LENGTH: 4000 mm

BELT WIDTH: 650 mm

HEIGHT (CABINET SIDE): 630/850 mm

HEIGHT (VARIABLE SIDE): 1100/2230 mm

LINEAR LOAD: 50 kg/m

BELT SPEED ADJUSTABLE: 5 – 22 m/min

DRIVE UNIT: 0,55 kW
