Nordic Dino XWB Electric
Images

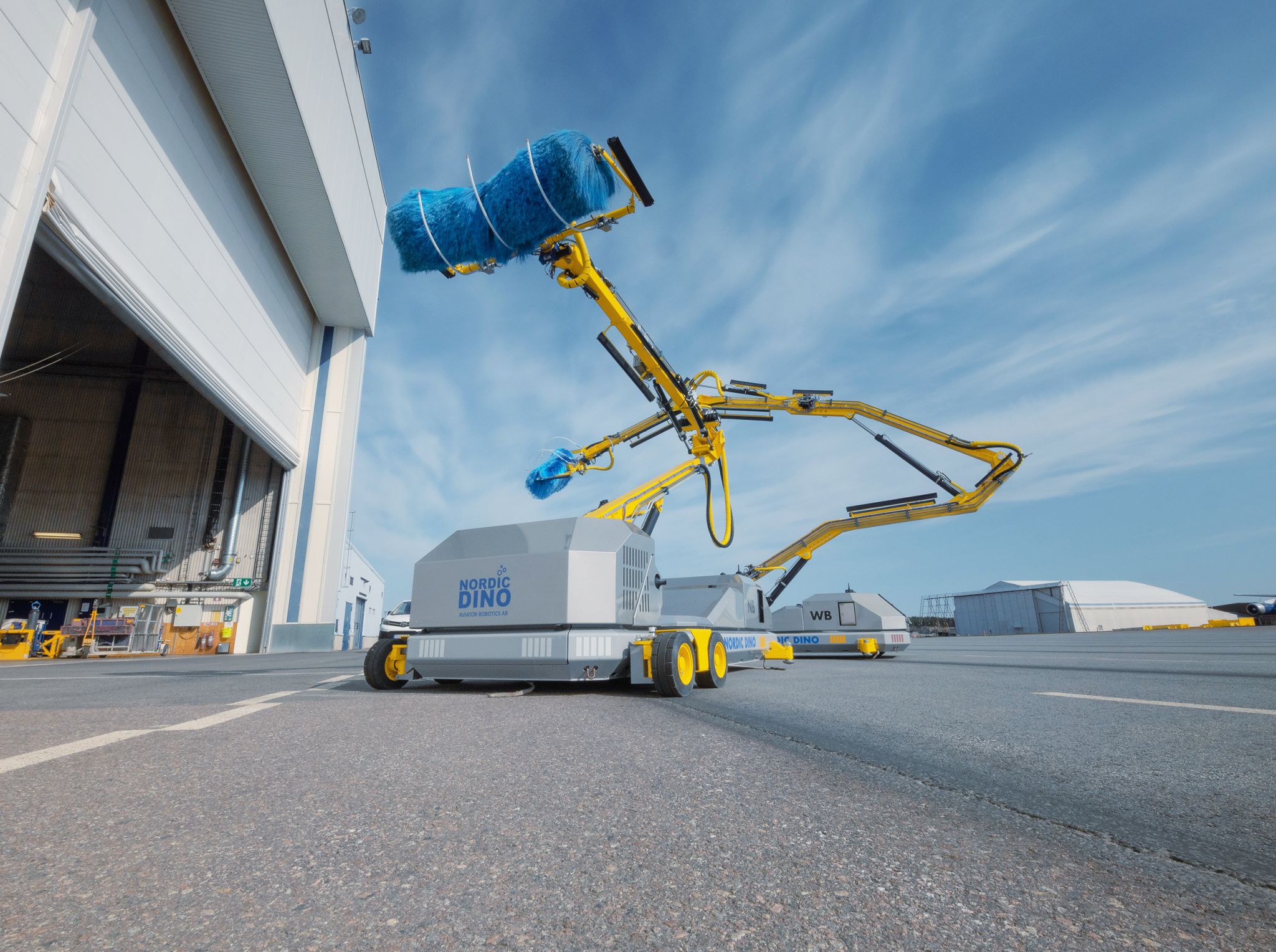

The largest model Dino aircraft washing machine is optimized for cleaning extra wide-bodied aircraft such as the A380 and other large aircraft. It includes a three-arm cleaning system featuring a longer under arm and a shorter top arm to cope with larger wing areas.
With a washing height of 11.3 meters comes with both a diesel (Kubota Diesel Engine 18.5 kW – 24.8 Hp – 2,600 rpm), or an electric option (10 kW Electric Motor VAC 2,500 RPM), 500L main tank, and a 90L spray tank.
Power Unit: | 10 kW Electric motor VAC 2500 rpm |
Control Unit: | Zapi ACE3 80V 550A |
Battery: | 80V 375Ah |
Converter: | 80VDC/24V 500W charging 2x12V/45Ah batteries |
Main hydraulic pump: | Sauer KRR/038, variable displacement. Electronically controlled load sensing. System pressure range:20-120 BAR |
Main tank: | Stainless steel: 500 litres |
Spray tank: | Stainless steel: 90 litres |
Main control panel: | Stainless steel with cooling unit Danfoss CANBUS control with multiple safety system |
Wireless control module: | Frequency: 406 – 472 MHZ
Range > 100 meters < 14 continuous operation Charging time: 2,5 hours |
