P855
| Company | CU Phosco |
|---|
Images
Description
Specifications

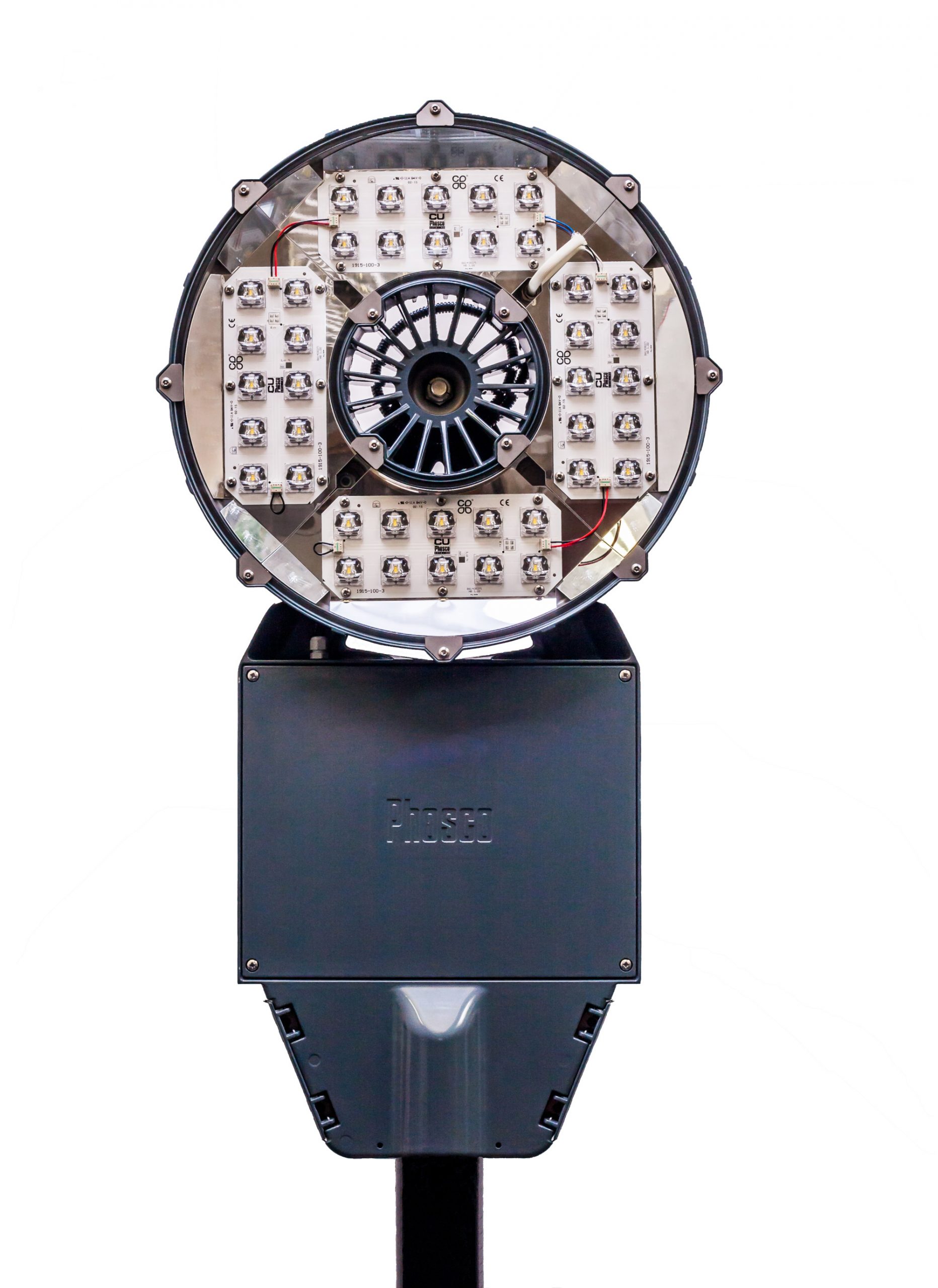

P855-288 a highly innovative, high mast LED luminaire with 360° rotating STAR-optic®. The functional yet compact design delivers exceptionally powerful optical and thermal performance, whilst maintaining a low weight and wind area. P855-288’s wide range of optical distributions coupled with 360° rotation
delivers unlimited freedom in lighting design regardless of luminaire orientation, while optimising energy efficiency for even the most challenging scheme. It is the ultimate solution to replace traditional High Mast HID sources with.
Features & Benefits:
- STAR-optic® system delivers 360° variable photometry
- PMMA optic minimises light at angles
- Slim, elegant, and state-of-the-art design
- High flux density and efficacy LED
- Powerful output up to 61,220 lm
- Superior luminaire efficacy up to 160 lm / W
- Wide range of light distributions
- Low lumen depreciation (L95 at 90,000 hours) at full power
- User friendly installation
- Maximised savings on energy and maintenance costs
- Minimal total cost of ownership
- Up to G6 glare rating. Dark sky friendly, no upward light
- Flexible and intelligent lighting control options
- Lightweight and low windage allowing retrofit onto most existing masts
- IP66 ingress protection for Optical & Driver Compartment
- 100% recyclable, low carbon footprint
- Light Source: High Power CSP LEDs
- Number of LEDs: 288
- Power Consumption: 104 – 411W
- Luminaire Luminous Flux: 16,500 ~ 61,220 lm
- Luminaire Efficacy: 149 – 160 lm/W (Ta = 25ºC)
- Driver Current: 200mA ~ 1000mA (in 25mA steps)
- Lumen Maintenance Output: L85 @ 100,000 hrs (Ta = 45ºC ) & L90 @ 100,000 hrs ( Ta ≤ 40ºC ) L95 @ 90,000 hrs (Ta ≤ 25ºC)
- Operating Temperature: -40ºC to +50ºC
- Weight: (Total) 17kg
- Correlated Colour Temperature: Neutral white, 4000K (3000K option)
- Glare Rating: up to G6
- Colour Rendering Index: > 70
- Optical Cover: Flat Glass
- Electrical Class: I
- Control System Input: DALI, Switch dim
- Surge Protection: 10 kV Comm. Mode 6 kV Diff. Mode to IEC 61000-4-5.
- Lighting Regulation: Mini Photocell, NEMA Socket, Wireless CMS options
- Installation Height: 15 ~ 40m
- Installation: Ø 42 – 60mm x 100mm Side Entry
- Accessories: Bird spikes, Light Shields, Solar Shield
- Material: High pressure die cast aluminium (housing)
- Finish: Polyester powder coat cured under heat
- Colour: Light grey (RAL 7035), other RAL colours available on request
- Ingress Protection: IP66 (STAR-optic® module and driver compartment), IP54 (connection compartment)
- Wind Area: 0.085m2
