PAS 68 Static Bollards – HVM Crash tested
| Company | Avon Barrier |
|---|---|
| Product code | Avon 75/50 Scimitar Bollards, Avon 75/40 Scimitar Bollards, Avon 75/30 Scimitar Bollards |
Images
Description
Specifications

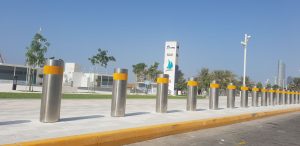

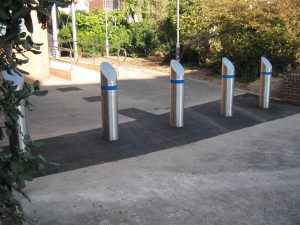

The static bollard range provides protection from a range of determined threats from vandalism to the extreme of a Vehicle Borne Improvised Explosive Device (VBIED), scimitar bollards are ideal to discreetly protect sites where aesthetics and public perception are a consideration.
Impact testing has been undertaken at a variety of speeds and foundation depths providing clients with a range of bollards with varying levels of protection.
Static bollards can be utilised for walkway protection or perimeter stand-off protection, and are available as removeable bollards as an option
Features & Options:
- Physically impact tested to PAS68 criteria
- Proportionate levels of mitigation
- Stainless Steel Sleeves
- Bespoke Sleeves
- Mitre top
- Paint options
- Removable option
| Scimitar 75/50 | Scimitar 75/40 | Scimitar 75/30 | |
| Bollard Diameter: | 273mm | 273mm | 219mm |
| Bollard Height | 1 metre (above ground level) | 1 metre (above ground level) | 1 metre (above ground level) |
| Full PAS68 Classification: | V/7500(N3)/80/90:10.6/11.1 | V/7500(N2)/64/90:3.3/0 | V/7500[N2]/48/90/0/0 |
| Foundation Depth: | 750mm
(Category C Depth >0.5m below ground level) |
750mm
(Category C Depth >0.5m below ground level) |
600mm
(Category C Depth >0.5m below ground level) |
