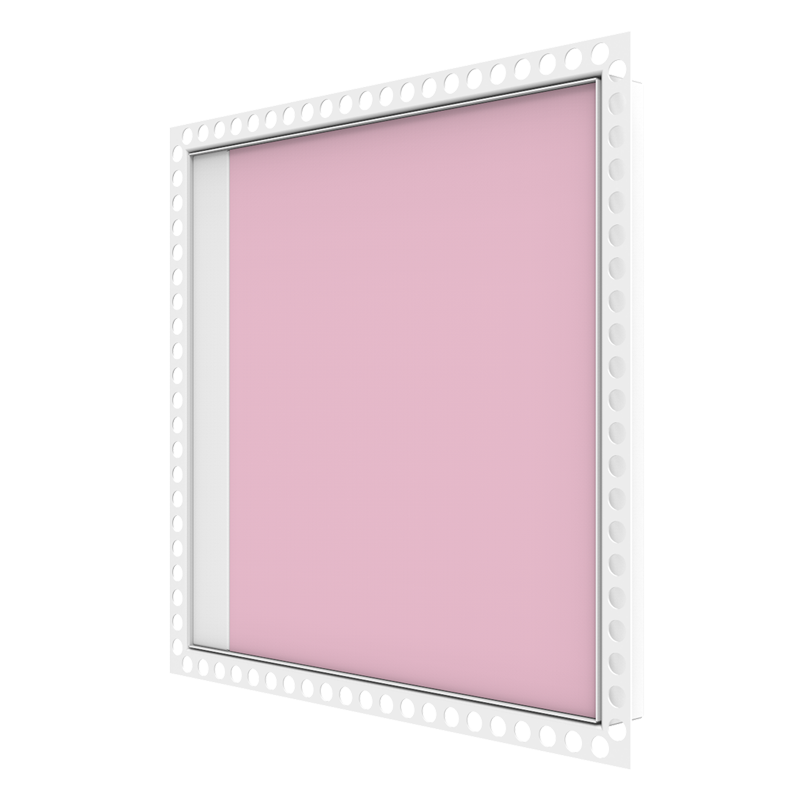

VISION 8000 Series Riser Doors FIRE RATED (up to 2hrs)

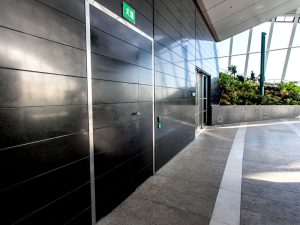

The VISION 8000 FR SERIES is a fire rated, high quality concealed riser door, designed to provide a simple yet secure permanent means of accessing building services, where the facade of the door can be clad in different materials including stone marble, ceramic and tile.

Suitable for vertical use into tiled jointless plaster and plasterboard walls, where doors are to be installed prior to tiling. Specified for use in hotels, commercial buildings, domestic or commercial kitchens and bathrooms and shower rooms, where a fire-rated solution is required for discreet access to mechanical and electrical services. All VISION 8000 FR Series riser doors are manufactured to order and are designed to match the specified tile module. This series of fire-rated riser doors can be clad in materials including stone, marble, tile or ceramic for a concealed aesthetic finish or to provide a design that is visually impacting for any project.

Features / Benefits

COMPOSITION

The welded metal frame holds a metal door tray lined with tile backing board. The door is hinged via fully adjustable concealed hinges and opens out towards the user. It is held closed by either a three point lock (3PL) or a three point high security lock (3HS).

• CERTIFIRE fire rated up to 120 minutes
• Bi-directionally fire tested for fire integrity from both sides
• Visually impacting within an overall design
• Facade of the riser door can be clad in stone, marble, ceramic and tile
• Concealed for a seamless aesthetic finish
• Doors are manufactured to exact tile module
• Maximum tile and adhesive build depth of 25mm
• Easy to install and lockable
• Single door (SD) and double door (DD) configurations
• High performance range, for vertical use with frame and lock options
• Fully recyclable at end of life
